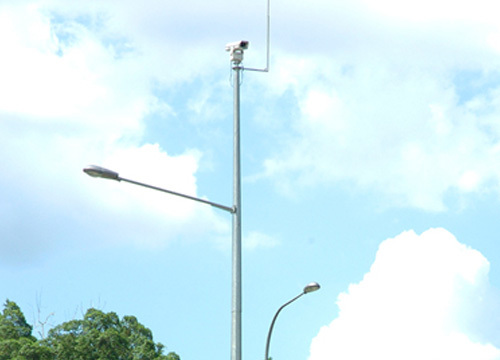

Camera Pole

‚Äč

The structurally rigid camera pole is ideal for tracffic surveillance as well as all security monitoring applications.

Over the years we have built up a strong reputation for our capability to manufacture camera poles to meet specifications required by customer.

FeaturesCatalogue
Technical Specification
  • Octagonal continuously tapered pole for height below 15m
  • Polygonal continuously tapered pole for height above 15m
  • Flexible mounting bracket to suit the camera positions
  • Specifically designed to minimize the oscillation effect of wind which may affect camera image quality
  • Conforms to Standard:
    Pole design BS EN 40
    Material BS EN 10025 S275/JIS G3101 SS400
    Welding BS 5135
    Galvanizing BS 729 / ISO 1461
Option
  • Height from 3m to 25m
  • Flanged mounted type or Planted type
  • Type of pole available: standard, climbing rungs, mid-hinged column or combination with others (eg. street lighting pole)
  • Customized design of camera bracket to match the camera required by customer
  • Aluminium lightning rod, junction box bracket, hole sleeve for cable entry and clamp type bracket
Application
  • Speed dome
  • Fixed camera
  • Zoom camera
