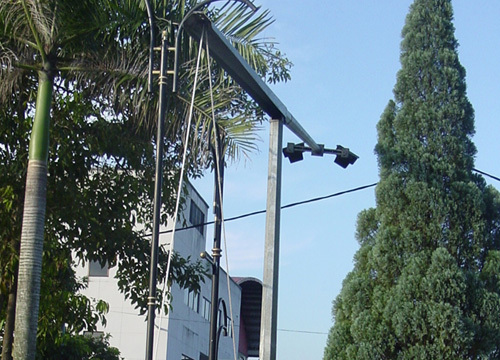

Mid-hinged Column

Mid-hinged column act on a simple mechanical see-saw principle with the column lowering in it’s own foot print. The raising and lowering operation is either by direct pull for lower capacity or by pulley if a higher capacity is required.

The pole design is an ideal solution where space is limited and offers a simple, safe and cost effective method for maintenance purpose.

Technical Specification
  • Conforms to Standard:
    Design ILE TR7
    Manufacturing BS EN 40-5
    Material BS EN 10025 S275JR
    Welding BS EN 1011-1
    Galvanizing BS EN ISO 1461
  • Height from 2.5m to 20m
  • Custom-made brackets
  • Manual winch

Standard design for upto 30kg top load (for light duty version) and 60kg topload (for heavy duty version).

For customised requirement (such as other applications – streetlighting/CCTV and etc. or with manual winch), please enquire.
